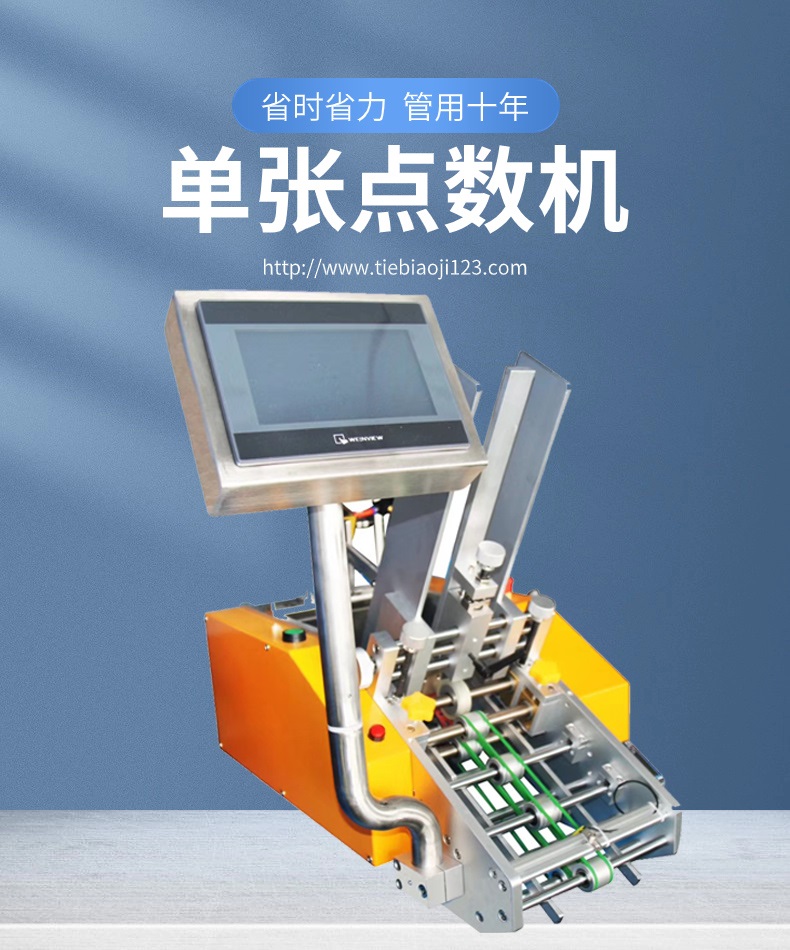

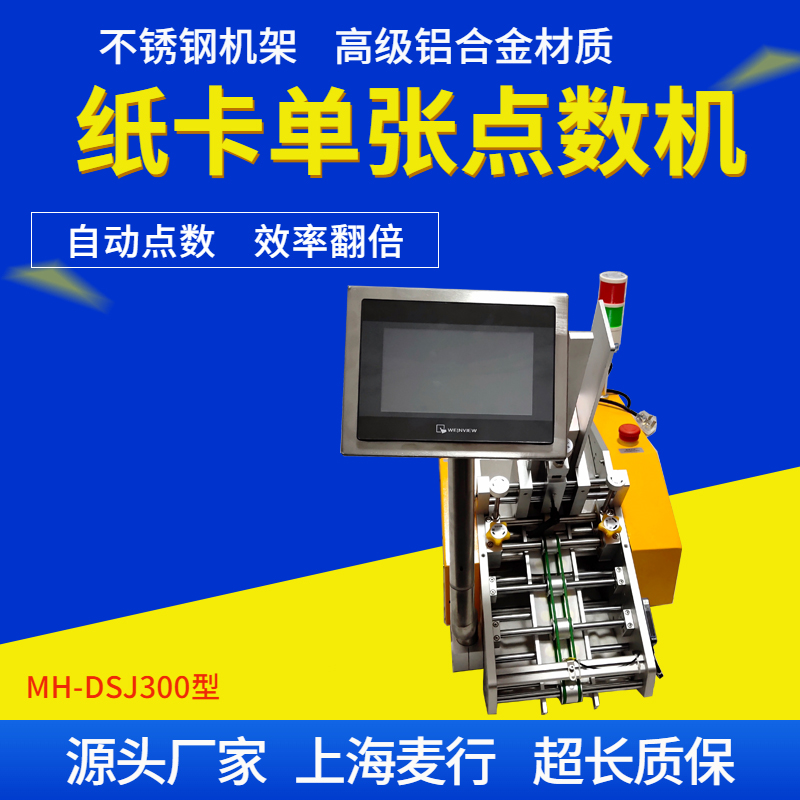

型號:MH-DSJ300
一、點數機適用范圍:
本產品適用于將整疊片狀的產品如:明信片、賀卡、掛牌、包裝袋、說明書、宣傳海報及各種不同尺寸的折疊狀產品;
二、點數機用途:
點數機就是將各種不同折疊狀的產品自動分開計數。也可以輕松的整合到相關的設備中作自動分卡、配合各種自動包裝線使用
三、主要性能和特點:

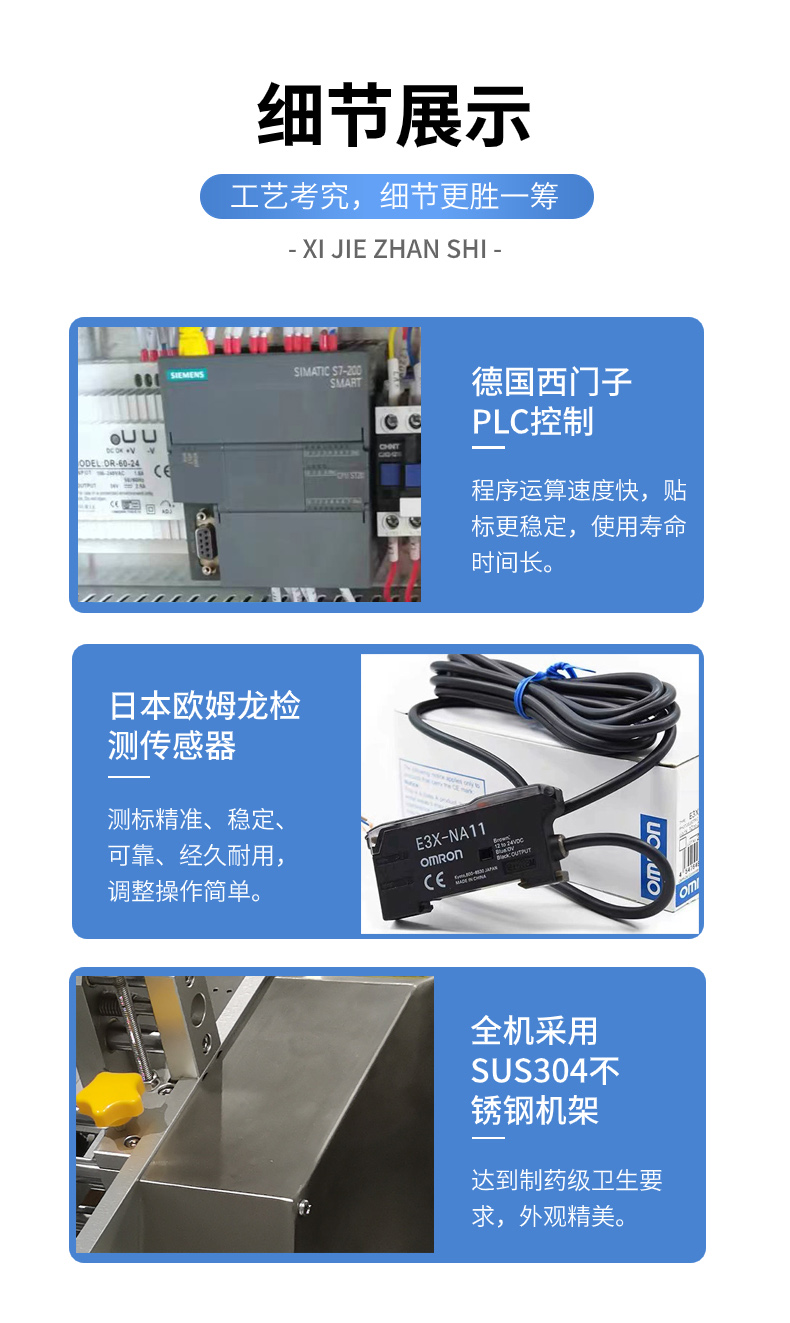

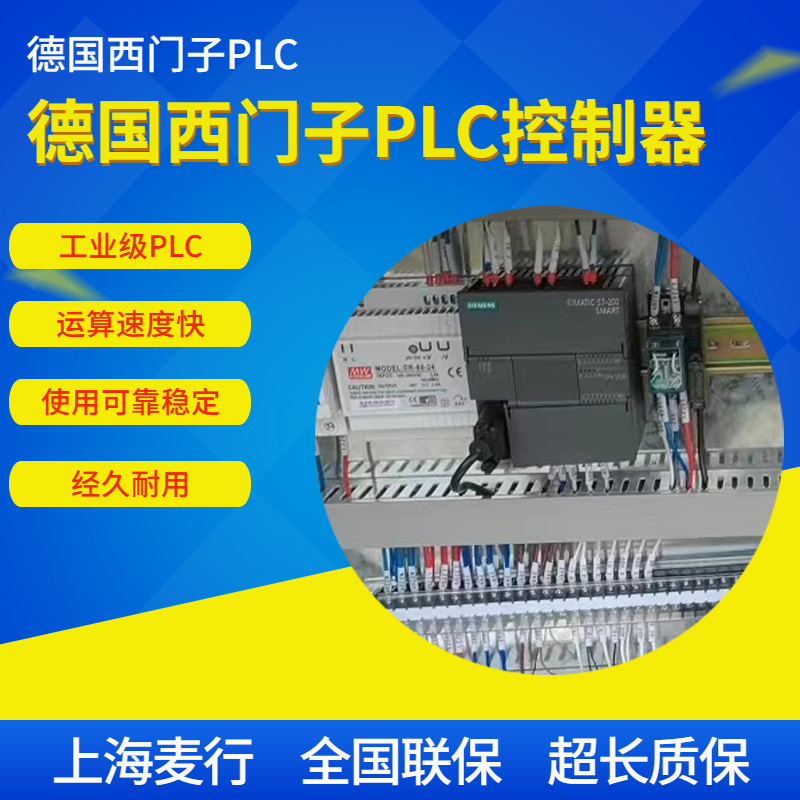

1.伺服電機控制操作系統,PLC控制器以及觸控界面,操作簡單。各種設備、操作均可在觸摸屏上輕松完成,同時具有儲存功能,設置好相關數據開機自動操作。
2.伺服電機最高速度可達到50米/分鐘
3 自動打卡機對接全自動包裝機,根據不同的包裝數量最快速自動發卡
4 漏卡無卡自動報警功能,可選擇發單張、多張及連續發卡功能
5 采用光電控制,開啟總電源開關后,光電感應,自動發卡
與自動化包裝設備的匹配,真正實現一體化自動包裝
6 系統本著帶有多項功能設定,包括預發卡長度、每次設定發卡數量、重卡時有自動報警等功能,實時在線控制
7 結構設計合理,更換易損件簡單快捷。
四、技術參數:
點數速度:0-50米/分鐘(與產品尺寸有關系)
產品厚度:0.05-3mm
產品尺寸:長50-300mm
寬110-300mm
電壓功率:220V/450W
外形尺寸:7000*700*550mm
機器重量:30公斤
Model: DSJ300 Scope of application:
this product is suitable for the whole laminated products such as: postcards, greeting cards, listing, packaging bags, brochures, posters and various sizes of folding products; Purpose: the counting machine is to separate and count the products with different folding shapes automatically. Can also be easily integrated into the relevant equipment for automatic cards, with a variety of automatic packaging line use
Key performance and features: 1. servo motor control operating system, PLC controller and touch interface, simple operation. All kinds of equipment, operation can be easily completed on the touch screen, at the same time has the storage function, set up the relevant data boot automatic operation. 2. the maximum speed of the servo motor can reach 50 meters per minute 3 automatic card printing machine docking automatic packaging machine, according to the different packaging quantity of the fastest automatic card 4 card leakage without automatic alarm function, can choose to send a single, multiple and continuous card issuing function 5 using photoelectric control, open the total power switch, photoelectric induction, automatic card Match with the automatic packaging equipment, truly realize the integration of automatic packaging 6 system with a number of functional settings, including pre-issuance card length, each set number of cards, heavy card automatic alarm and other functions, real-time online control 7 reasonable structure design, easy and quick replacement of vulnerable parts.
Technical parameter Point speed: 0 - 50 m / min ( related to product size ) Product thickness: 0.05 - 3mm Product size: length 50 - 300mm width 110 - 300mm Voltage power: 220v / 450w Outline dimensions: 700 mm* 700mm * 550mm Machine weight: 35 kg
