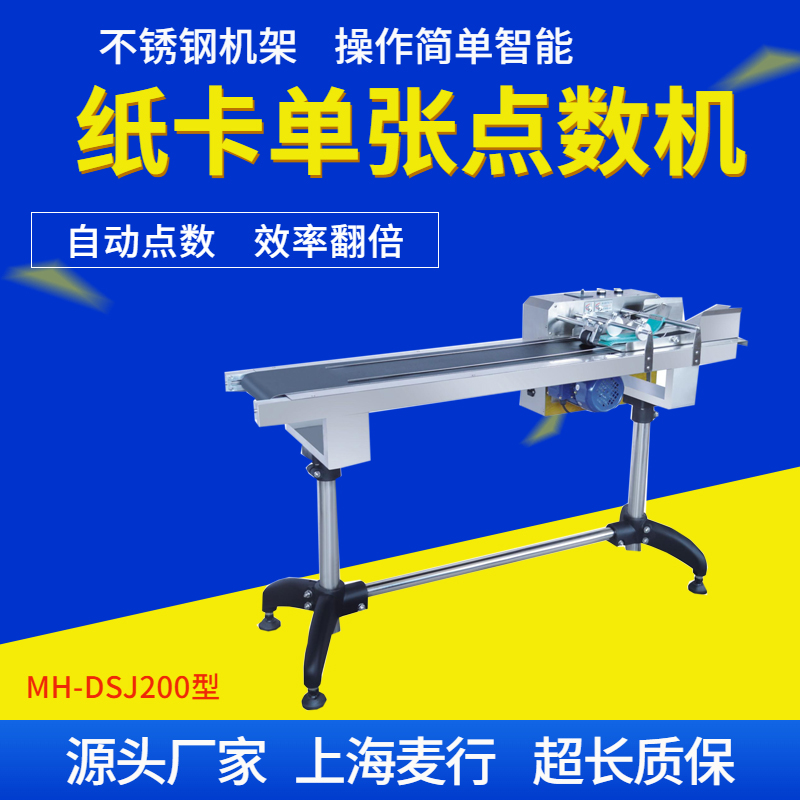

型號:MH-DSJ200
一、點數機用途:
用于將成疊的包裝袋、卡類、紙張自動分開,成單頁傳送帶上,用于清點數量,也可用于噴碼機或激光機進行噴印噴刻生產日期、批號、防偽標記、圖案等,從而減少人工分頁的繁瑣,充分發(fā)揮噴碼機、激光機的高速噴印優(yōu)點,提高噴印工作效率,并配備智能計數自動停機功能,方便生產管理。
二、點數機適用范圍:
包裝袋、塑料袋、紙盒、紙帶、標簽、紙片等
三、點數機特點:
1.變頻調速,工業(yè)鋁型材機架,高速自動分頁60-500個/分鐘;
2.可自動進行計數,也可自動設定分頁數量,到要求分頁數量自動停機,設定范圍1-9999(需要與噴碼機、激光機信號共享)
3.分頁高速度、定位高精度、生產高效率;
4.結構設計合理,更換易損件簡單快捷;
5.可選附件:自動收料裝置、單獨計數停機信號源;
6.可加噴碼機,對產品進行噴碼;
四、點數機技術參數:
1.電壓及功率:220V /50HZ 180W
2.被分離物尺寸長度: 40--320mm
3.被分離物尺寸寬度: 60--280mm
4.被分離物的尺寸厚度: 0.08--3mm
5.整機尺寸:1500*350*750mm
6.材質:不銹鋼
7.機器重量: 45kg
Model: MH - dsj200
Use of counting machine:
The invention is used for automatically separating stacked packaging bags, cards and paper into a single-page conveyer belt, counting the quantity, and also can be used for the production date, batch number, anti-counterfeiting marks, patterns and the like of the inkjet printing of the inkjet printer or the laser so as to reduce the complexity of manual paging, give full play to the advantages of high-speed inkjet printing of the inkjet printer and the laser, improve the inkjet printing working efficiency, and be provided with an intelligent counting automatic stop function, thereby being convenient to generate
Point machine scope of application:
Packaging bags, plastic bags, cartons, paper tape, labels, paper sheets, etc
Point machine features:
1. frequency conversion speed regulation, industrial aluminum profile rack, high-speed automatic paging 60 - 500 PCs / min 2. can automatically count, also can automatically set the number of pages, to require the number of pages automatically shut down, set the range of 1 - 9999 ( need to be shared with the code machine, laser signal )
3. high paging speed, high positioning accuracy and high production efficiency
4. reasonable structure design, easy and quick replacement of vulnerable parts
5. optional accessories: automatic feeding device, separate counting stop signal source
Point machine technical parameters:
1. voltage and power: 220v / 50hz 180w
2. dimension length of separated object: 40 - 320 mm
3. dimension width of separated object: 60 - 280mm
4. dimension thickness of the separated object: 0.08 - 3mm
5. overall dimensions: 1500 * 350 * 750mm
6. material: stainless steel
7. machine weight: 40 kg
