加工定制:是
品牌:麥行機械
型號:SBJ300
產品別名:標簽點數機
類型:復卷機
用途:糾偏,分卷,計數
售后服務:一年免費保修,終身維護
一、標簽點數機主要用途:
1、將自動計數卷回繞并對標簽的數量自動計數。
2、滿足GMP標準對出入庫標簽數量的統計。
3、將標簽反向,清點,分卷,糾偏等。
二、工作原理:
通電機帶動標簽轉動,用檢測光電來識別標簽,并發出感應信號傳輸給計數器,計數器通過顯示屏來顯示當前標簽的數量。
三、適用范圍 :
1、適用材料:不干膠標簽、膠袋、電子監管碼、條形碼等。
2、應用行業:廣泛應用于食品、醫藥、化妝品、日化、電子、五金、塑膠等行業。 四、標簽點數機特性:
1.結構合理,操作方便,版面簡單,易懂。 2.進口電機,保持速度穩定可靠。 3.可正反轉卷標,正轉計數,反轉把標簽恢復到回繞前狀態,不影響后續的應用。 4.德國進口電眼檢測觸發計數器,計數準確可靠。 5.雙計數系統,計數更精準。 6.標簽卷固定采用機械結構,簡單方便,適合在倉庫沒有氣源的環境。 7.標簽卷繞速度快,最大60米/分鐘。 8.收卷張力可調,結構簡單,旋轉手柄即可。
9.斷標或標簽繞完自動停機。
五、標簽點數機性能參數: 1. 最大標簽卷直徑:Φ350mm 2. 最大標簽卷高度:200mm 3. 最小標簽卷高度:20mm 4. 收標簽紙筒內徑:Φ38mm/Φ76mm(可選配) 5. 回轉速度:5-50m / min
6. 糾偏方式:機械糾偏 7. 功率:800W 8. 電源:AC220V 50/60Hz
9. 重量:約100kg
10.設備外形尺寸(長×寬×高):1400mm×800mm×1400mm

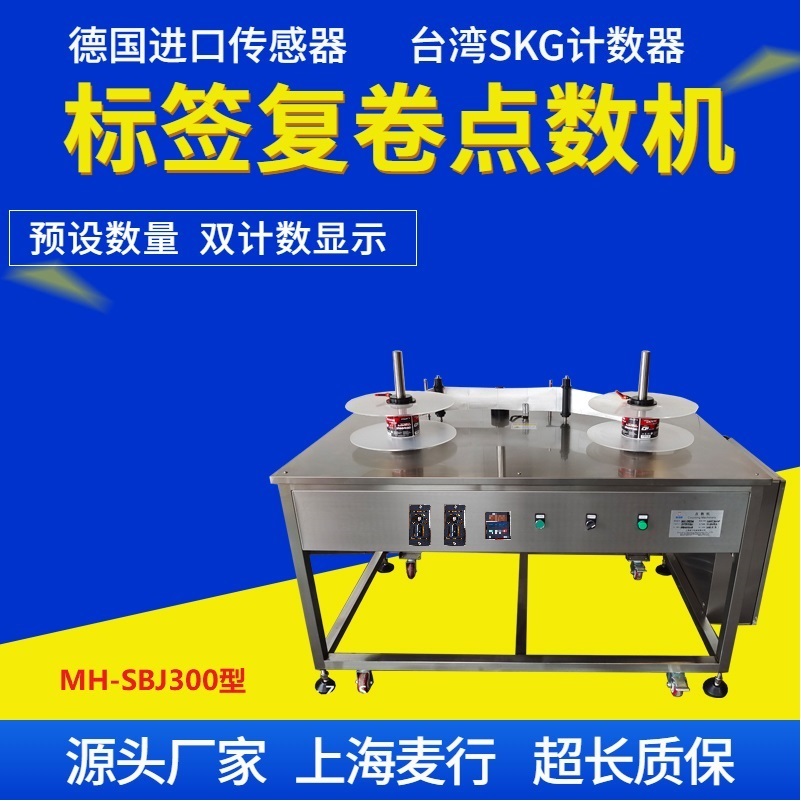

Model: MH - sbj300
Main purpose of label counting machine:
1. Automatically count the number of labels and rewind the coils.
2. Statistics on the number of inbound and outbound tags meeting GMP standards.
3. Reverse label, count, divide, correct deviation, etc.
Label point machine features:
1. Reasonable structure, convenient operation, simple layout, easy to understand.
2. Imported motor, keep the speed stable and reliable
3. Can reverse the label, forward rotation count, reverse the label back to the state before winding, does not affect the subsequent application

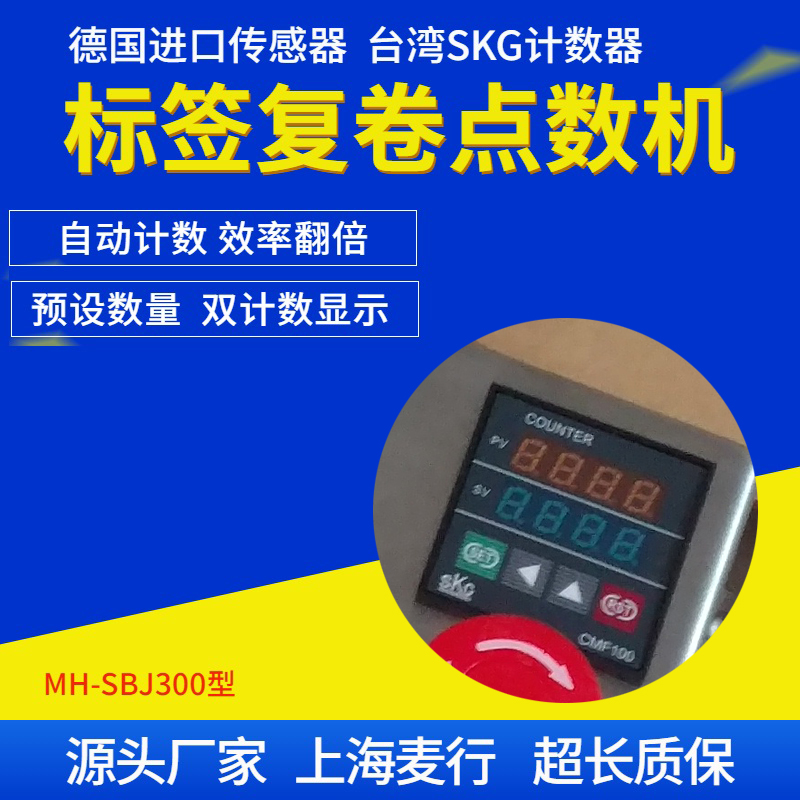

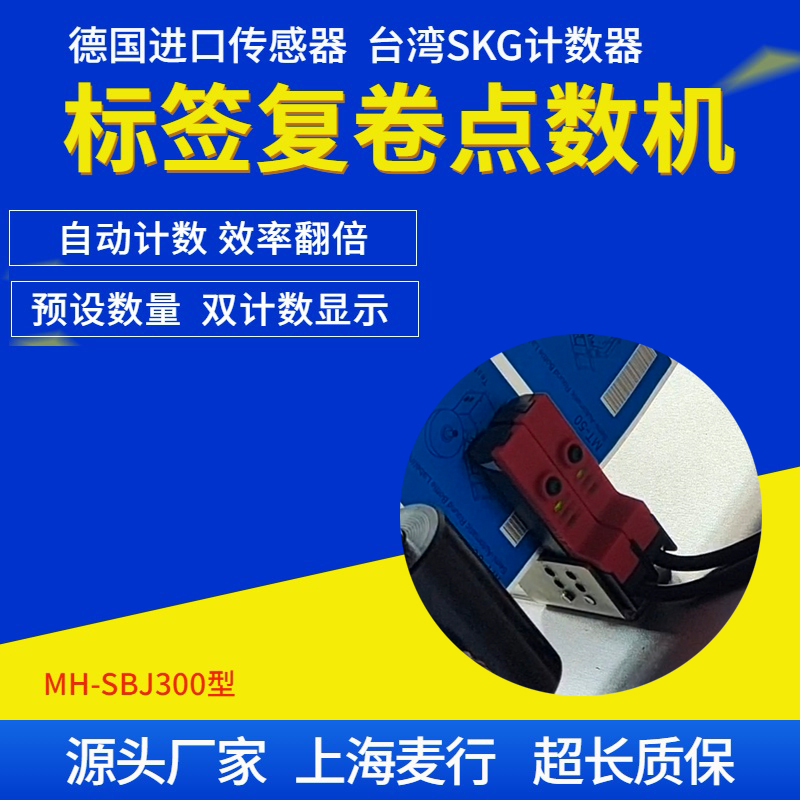

4. Germany imported electric eye detection trigger counter, accurate and reliable counting
5. Double counting system, counting more accurately
6. The label roll is fixed with cam structure, simple and convenient, suitable for the environment without air source in the warehouse
7. Label winding speed is fast, up to 70 m / min
8. The winding tension is adjustable, the structure is simple, and the handle can be rotated
9. The label or label around the automatic stop
Label point machine performance parameters:
1. Maximum label roll diameter: φ 500mm
2. Maximum label volume height: 200mm
3. Minimum label volume height: 12mm
4.Inner diameter of label receiving paper cylinder: φ 38mm / φ 76mm ( optional )
5. Rotating speed: 5 ~ 70m / min
6. Deviation correction method: mechanical deviation correction
7. Power: 800w
8. Power supply: ac220v 50 / 60hz
9. Weight ( kg ): about 100 kg
10. Equipment outline dimension ( mm ) ( length × width × height ): 1500 mm × 800 mm × 1500 mm
