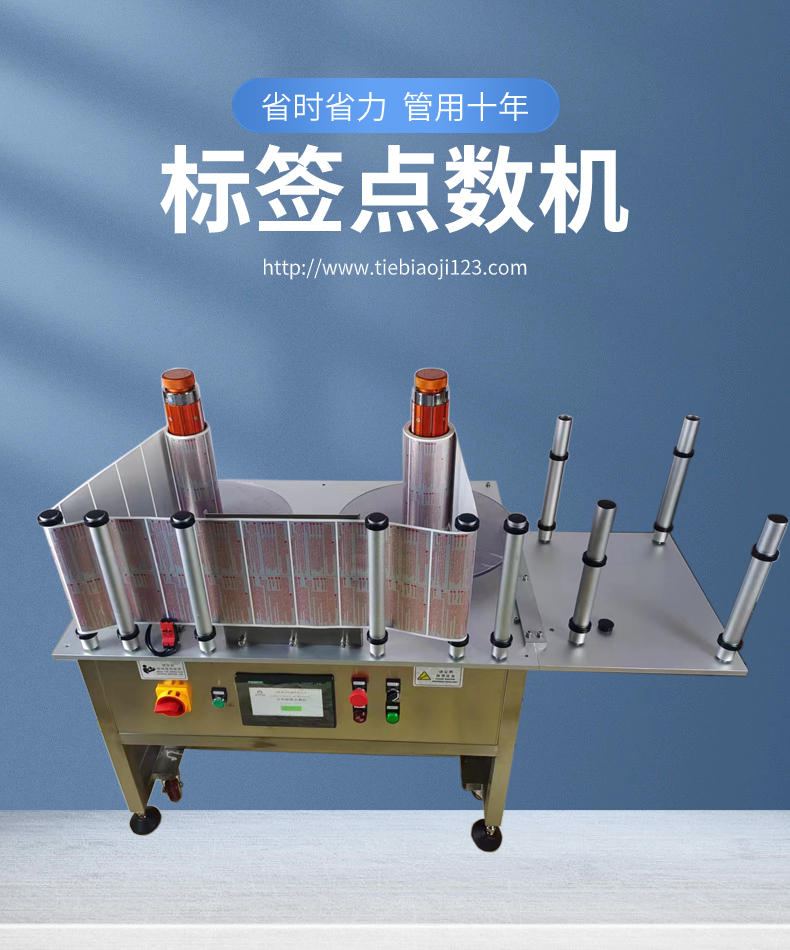

一、標簽點數機主要用途:
1、將自動計數卷回繞并對標簽的數量自動計數。
2、滿足GMP標準對出入庫標簽數量的統計。
3、將標簽反向,清點,分卷,糾偏等。
4、可人工進行檢測標簽質量,人工停機及處理標簽。
二、工作原理:
通電機帶動標簽轉動,用檢測光電來識別標簽,并發出感應信號傳輸給PLC,并且通過顯示屏來顯示當前標簽的數量。
三、適用范圍 :

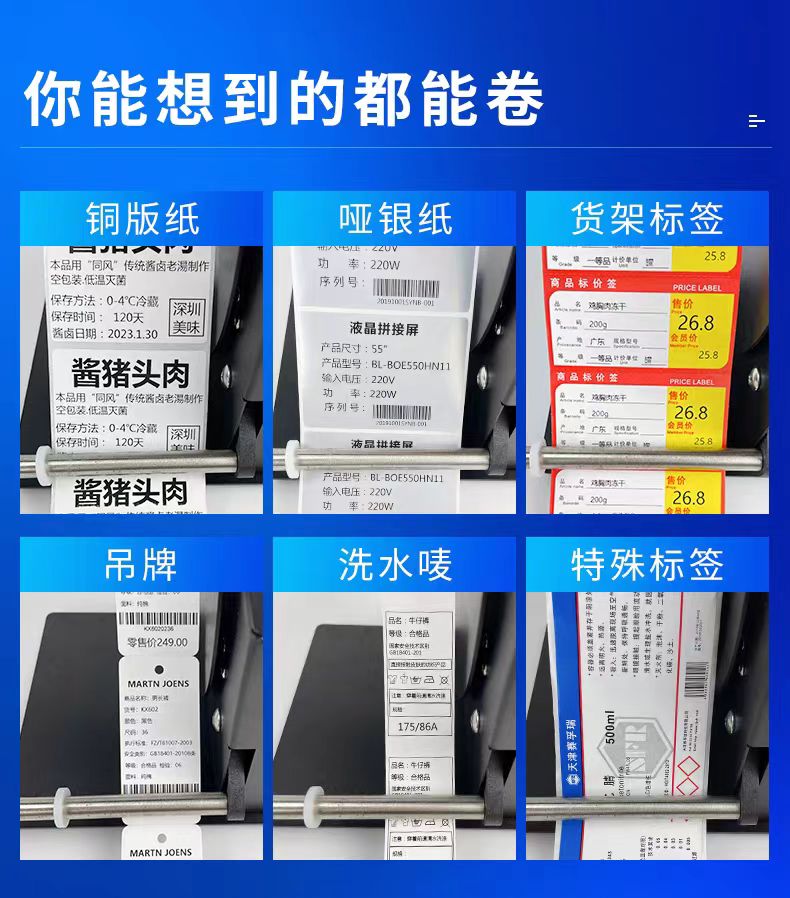

1、適用材料:不干膠標簽、膠袋、電子監管碼、條形碼等。
2、應用行業:廣泛應用于食品、醫藥、化妝品、日化、電子、五金、塑膠等行業。 四、標簽點數機特性:

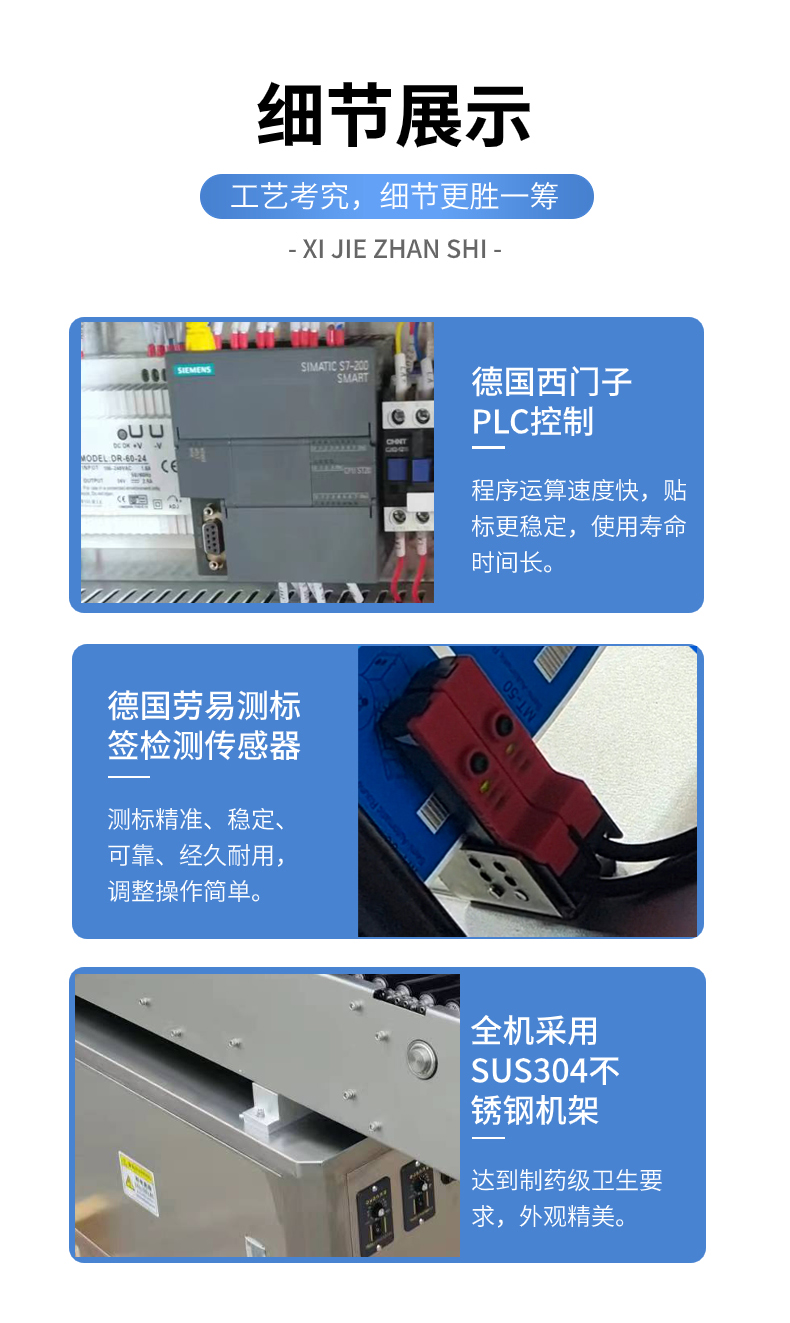

1、德國西門子PLC程序控制器,德國西門子人機界面顯示,參數設置簡單,外觀大氣,功能更全。
2.結構合理,操作方便,版面簡單,易懂。 3.雙步進電機控制,保持速度穩定可靠。 4.德國勞易測進口電眼檢測觸發計數器,計數準確可靠。 5.雙電眼檢測,雙計數系統,計數更精準。 6.標簽卷固定采用機械結構,簡單方便,適合在倉庫沒有氣源的環境。 7.標簽卷繞速度快,最大50米/分鐘 8、斷標或標簽繞完自動停機。

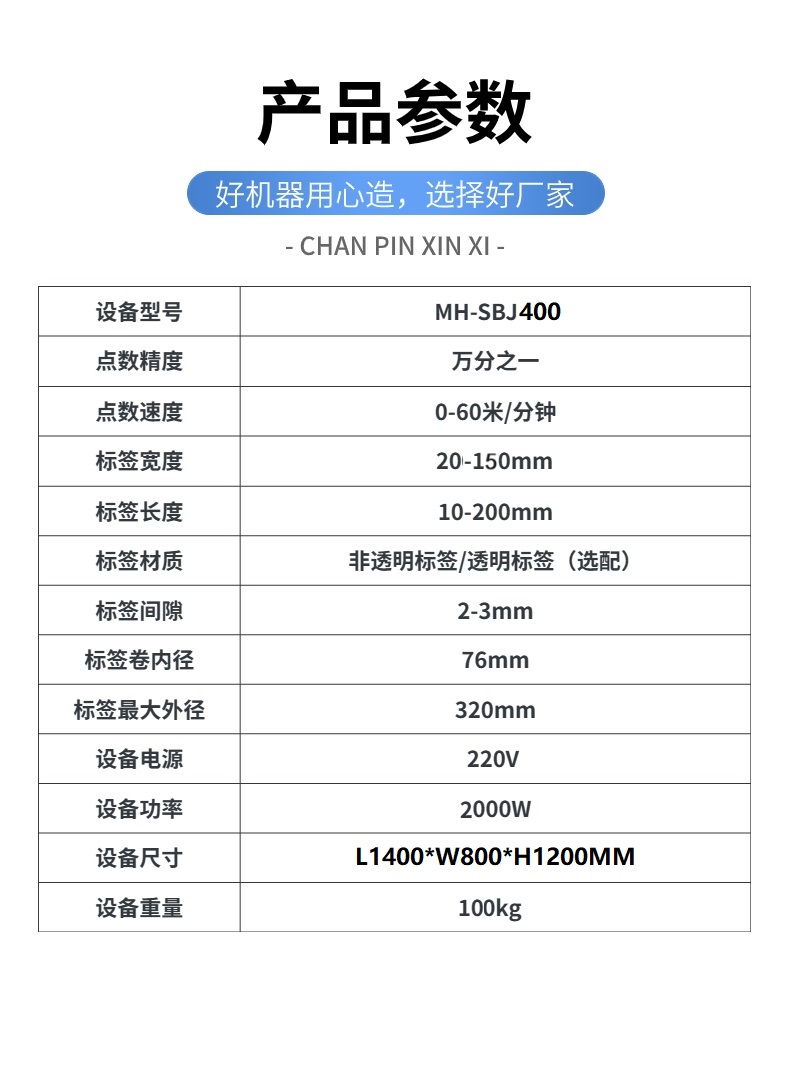

五、標簽點數機性能參數: 1.最大標簽卷直徑:Φ350mm 2.最大標簽卷高度:200mm 3.最小標簽卷高度:20mm 4.收標簽紙筒內徑:Φ38mm/Φ76mm(可選配) 5.回轉速度:0-50m / min
6.糾偏方式:機械糾偏 7. 功率:1500W 8.電源:AC220V 50/60Hz
9.重量:約100kg
10.設備外形尺寸(長×寬×高):1500mm×800mm×1000mm
Model: MH - SBJ400
Main purpose of label counting machine:
1. automatically count the number of labels and rewind the coils. 2. statistics on the number of inbound and outbound tags meeting GMP standards.
3. reverse label, count, divide, correct deviation, etc.
4. the quality of labels can be detected manually, and the labels can be stopped and processed manually.
Label point machine features:
1. PLC program controller, man-machine interface display, parameter setting is simple, the appearance of the atmosphere, the function is more complete.
2. reasonable structure, convenient operation, simple layout, easy to understand.
3. double step motor control, maintain stable and reliable speed
4. Germany imported electric eye detection trigger counter, accurate and reliable counting
5. double counting system, counting more accurately.
6. the label roll is fixed by mechanical structure, simple and convenient, suitable for the environment without air source in the warehouse
7. label winding speed is fast, up to 40 m / min
8. the winding tension is adjustable, the structure is simple, and the handle can be rotated
9. the label or label around the automatic stop Label point
machine performance parameters:
1. maximum label roll diameter: φ 350mm
2. maximum label volume height: 150mm
3. minimum label volume height: 20mm
4. inner diameter of label receiving paper cylinder: φ 38mm / φ 76mm ( optional )
5. rotating speed: 0 ~ 40m / min
6. deviation correction method: mechanical deviation correction
7. power: 700w
8. power supply: ac220v 50 / 60hz
9. weight ( kg ): about 100 kg
10. equipment outline dimension ( mm ) ( length × width × height ): 1500 mm × 800 mm × 1000 mm
