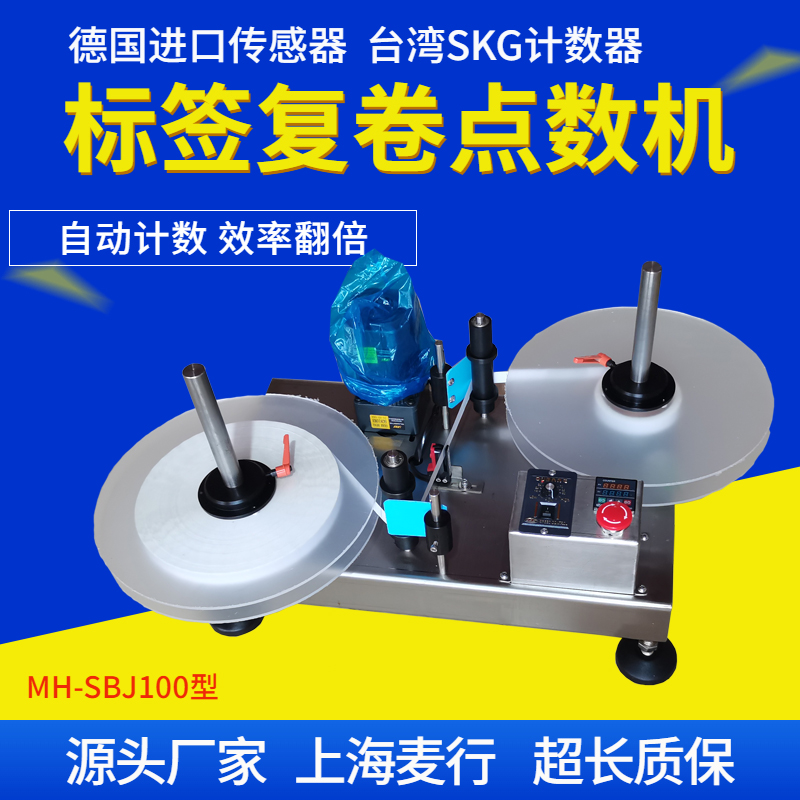

型號：MH-SBJ100
加工定制：是
品牌：麥行機械
型號：SBJ100
產品別名：標簽點數機
類型：復卷機
用途：糾偏,分卷、點數
售后服務：一年免費保修，終身維護
一、基本用途：
標簽點數機適用于制藥、食品、日化等行業。
標簽點數機適合用于，標簽卷筒入倉庫前的，整卷標簽張數的清點。
二、工作原理：
通電機帶動標簽轉動，用檢測光電來識別標簽，并發出感應信號傳輸給計數器，計數器通過顯示屏來顯示當前標簽的數量。
三、適用范圍 ：
1、適用材料：不干膠標簽、膠袋、電子監管碼、條形碼等。
2、應用行業：廣泛應用于食品、醫藥、化妝品、日化、電子、五金、塑膠等行業。
四、功能特點：
1、結構合理，操作方便，版面簡單，易懂。只需手工放入一卷標簽，開啟電源，點擊啟動按鈕，設備就可以自動數標。
2、取放原料方便，快速。
3、外形美觀大方，機型牢固，運行平穩。
4、穩定性選擇,中檔性能配置和高檔性能配置,滿足不同客戶需求。
5、計數穩定,采用德國進口光電檢測。
6、各零部件全部采用不銹鋼和鋁合金制作，達到廠家要求，外觀新穎美觀。
五、技術參數：
1、適用標簽寬度：0mm～120mm
2、適用標卷外徑：φ330mm
3、適用標卷內徑：3”(φ76mm)
4、糾偏方式：機械糾偏
5、運行速度（m/min）：0～40m/min,
6、計數速度：0～500pcs/分
7、重量：約28kg
8、主機功率：60W
9、電壓(V) ：220V, 50HZ
10、設備外形尺寸（長×寬×高）：760mm×580mm×580mm
Model: MH-sbj100
Basic use:
Label counting machine is suitable for pharmaceutical, food, daily chemical and other industries.
Label counting machine is suitable for, label drum into the warehouse, the whole volume of label sheet count. Simple operation, just manually put a roll of labels, turn on the power supply, click on the start button, the equipment can be automatically numbered. Precision, speed, high cost performance is the characteristics of this product.
Label point machine biggest bright spot: can be reversed, for some labels have positive and negative requirements is extremely easy.
Label counting machine is suitable for label drum into the warehouse, the whole volume of label sheet count.
Scope of application:
Applicable materials: sticker, adhesive bag, electronic supervision code, bar code, etc.
Application industry: widely used in food, medicine, cosmetics, daily chemical, electronic, hardware, plastic and other industries.
Functional characteristics:
The structure is reasonable, the operation is convenient, the layout is simple, easy to understand.
The raw materials are convenient and fast.
The shape is beautiful and generous, the model is firm, and the operation is stable.
Stability selection, mid-range performance configuration and high-end performance configuration to meet different customer needs;
The counting is stable, and the photoelectric detection imported from Germany is adopted;
All parts and components are made of stainless steel and aluminum alloy, meet the requirements of the manufacturer, novel and beautiful appearance.
Technical parameter:
Applicable label width ( mm ): 0mm ~ 120mm;
Applicable outside diameter of label roll ( mm ): φ 330mm;
The inner diameter ( mm ): 3 " ( φ 76mm ) of the label is applicable;
Correction method: mechanical correction;
Operating speed ( m / min ): 0 ~ 40m / min;
Min counting speed: 0 ~ 500 PCs / min;
Weight ( kg ): approx. 28 kg;
Host power: 60w;
Voltage ( v ): 220v, 50hz;
Dimensions ( mm ) ( length × width × height ): 760 mm × 580 mm × 580 mm;
