加工定制:是
品牌:麥行機械

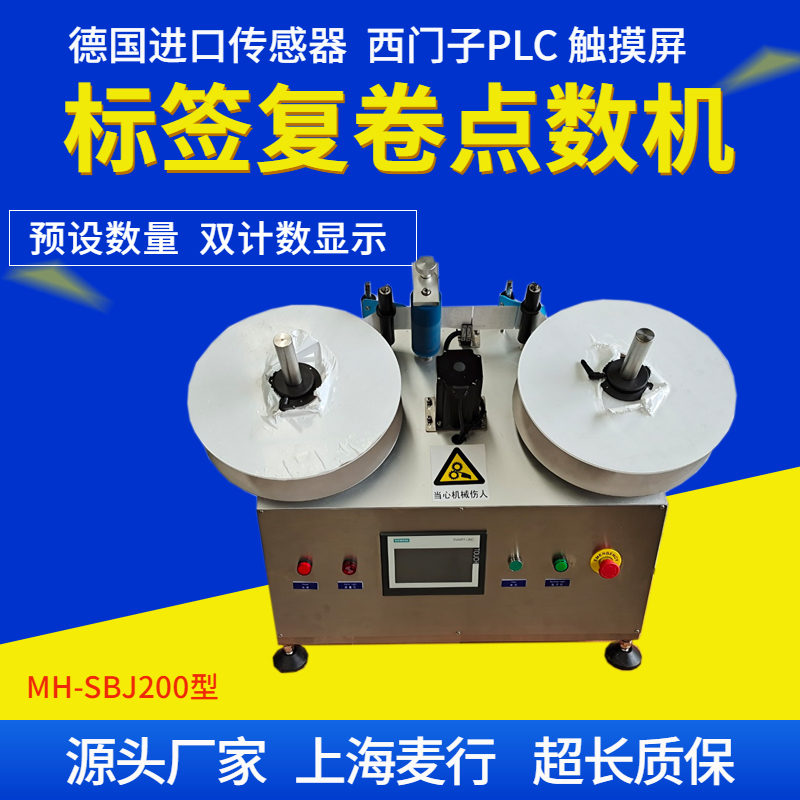

型號:SBJ200A
產品別名:標簽點數機
類型:復卷機
用途:糾偏,分卷,計數
售后服務:一年免費保修,終身維護
一、標簽點數機主要用途:
1、將自動計數卷回繞并對標簽的數量自動計數。
2、滿足GMP標準對出入庫標簽數量的統計。
3、將標簽反向,清點,分卷,糾偏等。
4、可增加機器視覺或條碼閱讀器可檢測標簽質量,自動判斷是否混入其他品種的標簽。
5、增加噴碼機可在標簽上噴印日期、流水號等標識信息。
二、工作原理:
通電機帶動標簽轉動,用檢測光電來識別標簽,并發出感應信號傳輸給PLC,并且通過顯示屏來顯示當前標簽的數量。
三、適用范圍 :
1、適用材料:不干膠標簽、膠袋、電子監管碼、條形碼等。
2、應用行業:廣泛應用于食品、醫藥、化妝品、日化、電子、五金、塑膠等行業。 四、標簽點數機特性:
1、PLC程序控制器,人機界面顯示,參數設置簡單,外觀大氣,功能更全;
2、結構合理,操作方便,版面簡單,易懂; 3、步進電機控制,保持速度穩定可靠; 4、德國進口電眼檢測觸發計數器,計數準確可靠; 5、雙計數系統,計數更精準; 6、標簽卷固定采用機械結構,簡單方便,適合在倉庫沒有氣源的環境; 7、標簽卷繞速度快,最大40米/分鐘; 8、收卷張力可調,結構簡單; 9、斷標或標簽繞完自動停機;
五、標簽點數機性能參數: 1、最大標簽卷直徑:Φ350mm 2、最大標簽卷高度:100mm 3、最小標簽卷高度:20mm 4、收標簽紙筒內徑:Φ76mm(3英寸) 5、回轉速度:0—40m / min
6、糾偏方式:機械糾偏 7、功率:400W 8、電源:AC220V 50/60Hz
9、重量:約100kg
10、設備外形尺寸(長×寬×高):100mm×600mm×600mm
Model: MH-sbj200A
Main purpose of label counting machine:
1. automatically count the number of labels and rewind the coils. 2. statistics on the number of inbound and outbound tags meeting GMP standards.
3. reverse label, count, divide, correct deviation, etc.
4, increase the machine vision or bar code reader can detect the quality of labels, automatically determine whether to mix with other varieties of labels.
5. add the identification information such as the date and serial number of the inkjet printer on the label.
Label point machine features:
1、Plc program controller, man-machine interface display, parameter setting is simple, the appearance of the atmosphere, the function is more complete.
2、Reasonable structure, convenient operation, simple layout, easy to understand.
3、Step motor control, keep the speed stable and reliable.
4、German imported electric eye detection trigger counter, accurate and reliable counting.
5、Double counting system, counting more accurately.
6、Label roll fixing adopts mechanical structure, simple and convenient, suitable for the environment without air supply in the warehouse.
7、fast label winding speed up to 40 m / min
8、The winding tension is adjustable, the structure is simple, and the handle can be rotated.
9、automatic stop after marking or label winding
Label point machine performance parameters:
1.Max label roll diameter: φ 350mm
2.Max label volume height: 150mm
3.Minimum label volume height: 20mm
4.inner diameter of label receiving cylinder: φ 38mm / φ 76mm ( optional )
5.Rotation speed: 0 ~ 40m / min
6.Deviation correction method: mechanical deviation
7. correction Power: 400w
8.Power supply: ac220v 50 / 60hz
9.Weight ( kg ): about 100 kg
equipment form factor ( mm ) ( length × width × height ): 1300 mm × 800 mm × 1000 mm
